| Model Version | GS1016 2.0 | |
|---|---|---|
| Interfaces | Gigabit RJ45 Ports | 16 |
| Extend Mode Ports | #1~#14 | |
| VLAN Mode Ports | #1~#14 | |
| LED |
|
|
| Power Input | AC Inlet | |
| Physical Buttons | VLAN/Default/Extend DIP Switch | |
| Performance | Copper Speed and Distance |
|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. | |
| MAC Address Table | 8192 | |
| Max Switching Capacity | 32 Gbps | |
| Max Forwarding Rate | 23.808 Mpps | |
| Power | Power Methods | AC |
| AC | 90-260V~, 50/60Hz | |
| Max Power Consumption | 15W | |
| Switching | 802.3 Protocols |
|
| L2 Features |
|
|
| Reliability | Grounding Methods |
|
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Mechanical | Dimension | 200×118×44 mm 7.87×4.65×1.73 inches |
| Casing Material | Metal | |
| Installation |
|
|

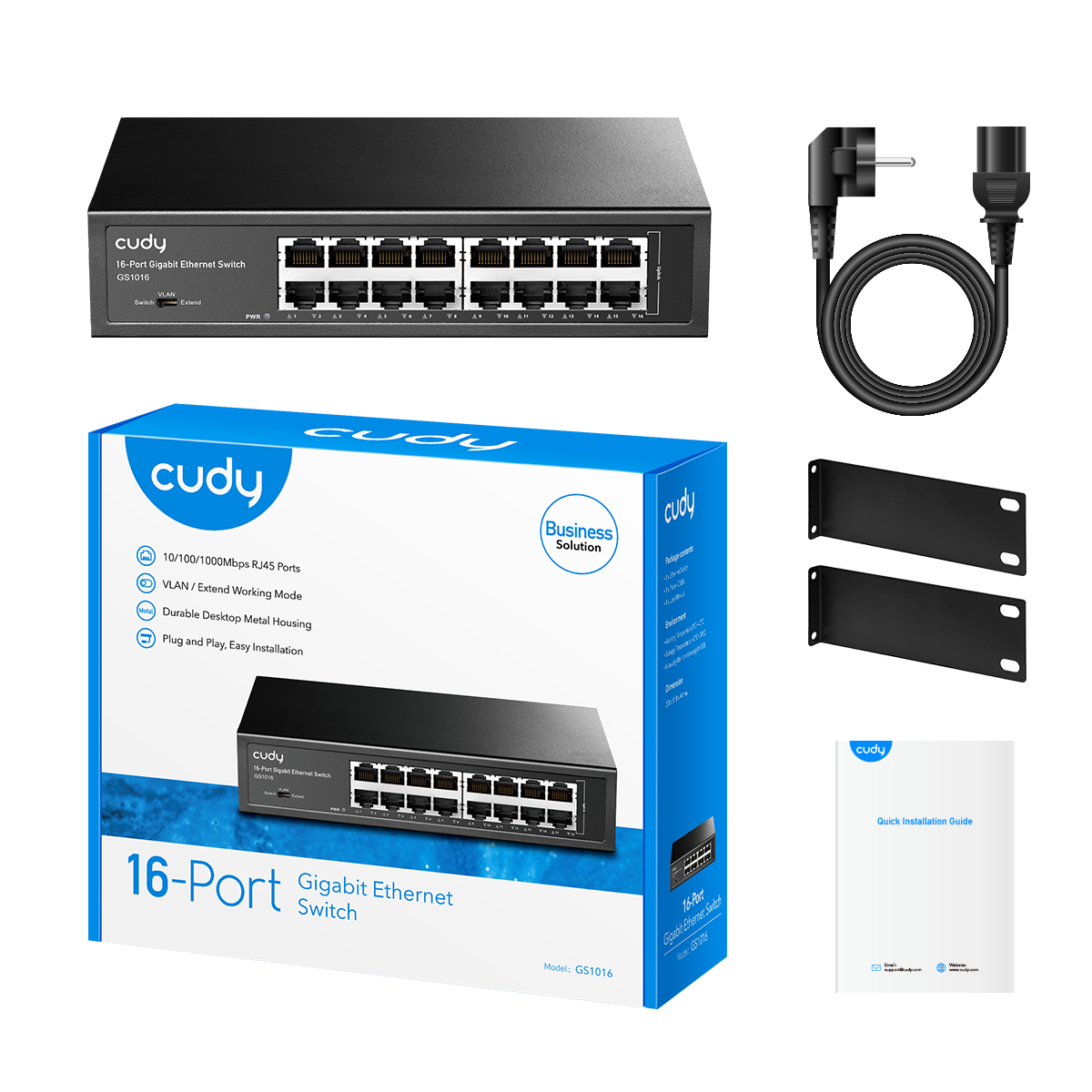

| Package Content |
|
|
| Ordering Information | Retail Package Dimension | 230×202×78 mm 9.06×7.95×3.07 inches |
| Units per Carton | 10 | |
| Carton Dimension | 48.2×41×22.1 cm 18.98×16.14×8.7 inches |
|
