| Model Version | GS108D 4.0 | |
|---|---|---|
| Interfaces | Gigabit RJ45 Ports | 8 |
| LED |
|
|
| Power Input | DC Jack | |
| Performance | Copper Speed and Distance |
|
| MAC Address Table | 8192 | |
| Max Switching Capacity | 16 Gbps | |
| Max Forwarding Rate | 11.904 Mpps | |
| Jumbo Frame | 15 KB | |
| Packet Buffer | 4 Mbit | |
| Power | Basic Power Saving | True |
| Power Methods | DC | |
| DC | 5V⎓0.55A | |
| Power Adapter | Input: 100-240V~, 50/60Hz Output: 5V⎓0.55A |
|
| Max Power Consumption | 2.75W | |
| Idle Power Consumption | 2.2W | |
| Switching | 802.3 Protocols |
|
| L2 Features |
|
|
| Reliability | EMS | IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 3 Surge: 2kV |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Mechanical | Dimension | 138×61.5×24 mm 5.43×2.42×0.94 inches |
| Product Weight | 89 g (3.14 oz.) | |
| Casing Material | Plastic | |
| Installation |
|
|

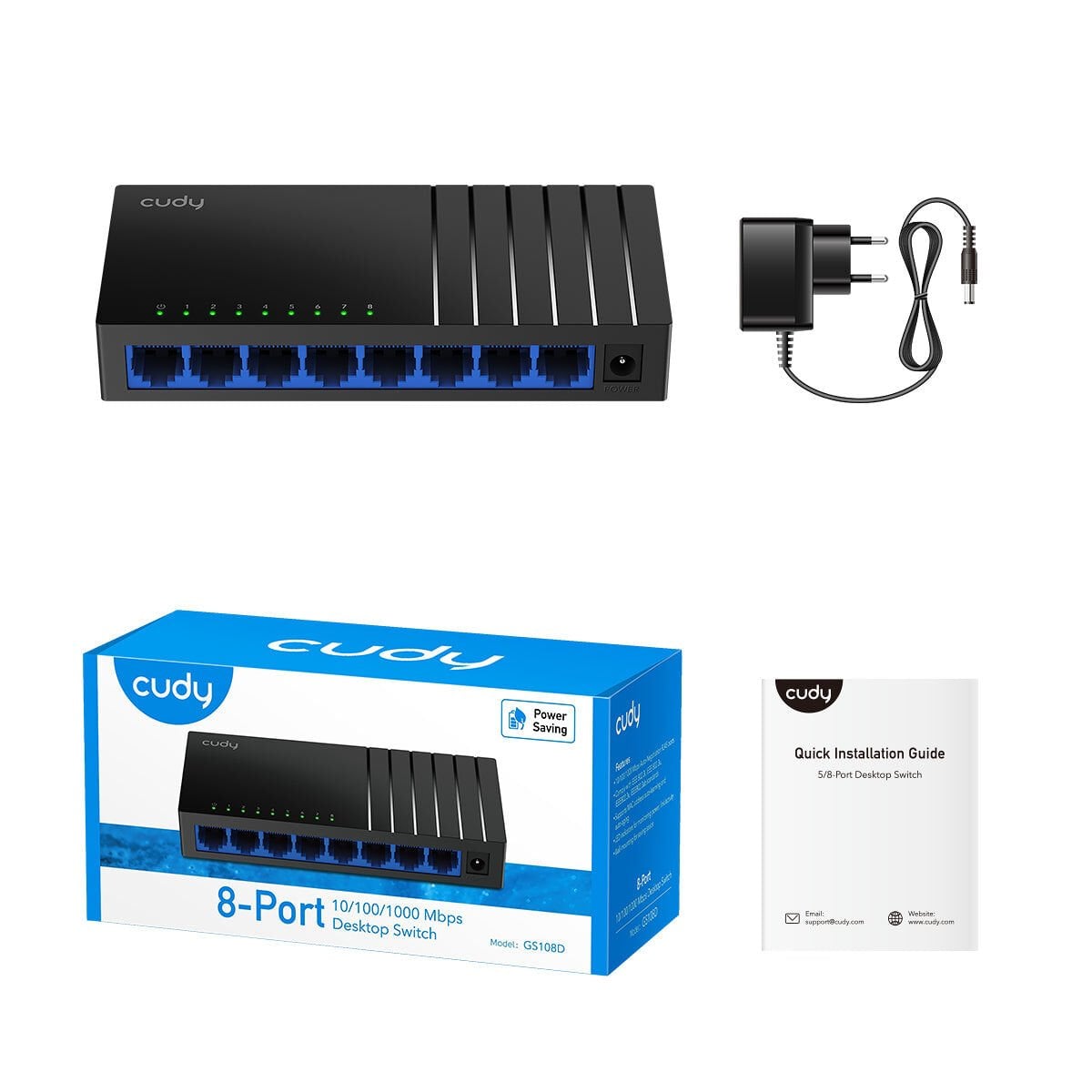

| Package Content |
|
|
| Ordering Information | Retail Package Dimension | EU/US: 151×75×63 mm 5.94×2.95×2.48 inches,UK: 151×75×81 mm 5.94×2.95×3.19 inches,151×95×72 mm 5.94×3.74×2.83 inches |
| Retail Package Weight | EU: 210 g (7.41 oz.),UK: 239 g (8.43 oz.),US: 195 g (6.88 oz.) | |
| Units per Carton | EU/US: 50,UK: 50,30 | |
| Carton Net Weight | EU: 10.5 kg (23.15 lbs),UK: 11.9 kg (26.23 lbs),US: 9.8 kg (21.61 lbs) | |
| Carton Gross Weight | EU: 10.7 kg (23.59 lbs),UK: 12.8 kg (28.22 lbs),US: 10.4 kg (22.93 lbs) | |
| Carton Dimension | EU/US: 33×31.7×39.5 cm 12.99×12.48×15.55 inches,UK: 43×32.5×40 cm 16.93×12.8×15.75 inches,48×38×21.2 cm 18.9×14.96×8.35 inches |
|
