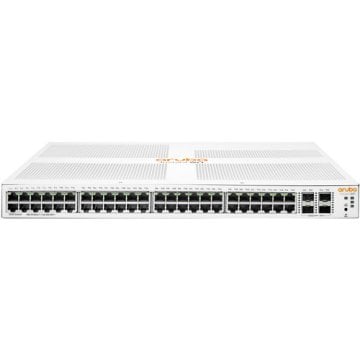

Aruba IOn 1930 48G 4SFP+ Switch (JL685A)
|
Aruba Instant On 1930 48G 4SFP/SFP+ Switch (JL685A) |
||
|
I/O Ports and Slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports |
|
|
Physical Characteristics |
Dimensions |
17.42(w) x 11.12(d) x 1.73(h) in (44.25 x 28.24 x 4.39 cm) (1U height) |
|
Weight |
6.91 lb (3.13 kg) |
|
|
CPU |
ARM Cortex-A9 @ 800 MHz |
|
|
Memory And Flash |
512 MB SDRAM 256 MB flash |
|
|
Packet Buffer |
1.5 MB |
|
|
Performance |
100 Mb latency |
< 4.5 uSec |
|
Packet size |
64B |
|
|
1000 Mb latency |
<2.2 uSec |
|
|
Packet size |
64B |
|
|
10000 Mb latency |
<1.2 uSec |
|
|
Packet size |
64B |
|
|
Throughput (Mpps) |
130.95 Mpps |
|
|
Packet size |
64B |
|
|
Switching capacity |
176 Gbps |
|
|
Routing table size (# of static entries) |
32 |
|
|
MAC address table size (# of entries) |
16,000 |
|
|
Reliability MTBF (years) |
114 |
|
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
|
|
Non-operating temperature |
‑40°F to 158°F (‑40°C to 70°C) |
|
|
Non-operating relative humidity |
15% to 95% @ 140°F (60°C) |
|
|
Altitude |
Up to 10,000ft (3.048 Km) |
|
|
Acoustic |
Power: 0 dB (no fan) |
|
|
Electrical Characteristics |
Frequency |
50-60 Hz |
|
AC voltage |
100 - 127 / 200 - 240 VAC |
|
|
Current |
.8/.5 A |
|
|
Maximum power rating |
36.9 W |
|
|
Idle power |
16.8 W |
|
|
PoE power |
n/a |
|
|
Power supply |
Internal power supply |
|
|
Safety |
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
|
|
Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
|
|
Immunity |
Generic |
CISPR 24 / CISPR 35 |
|
EN |
EN 55024:2010 / EN 55035:2017 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
IEC 61000-3-2, EN 61000-3-2 |
|
|
Flicker |
IEC 61000-3-3, EN 61000-3-3 |
|
|
Device Management |
Aruba Instant On solution; Web browser; SNMP Manager |
|
