Ruijie RG E-120(GE)

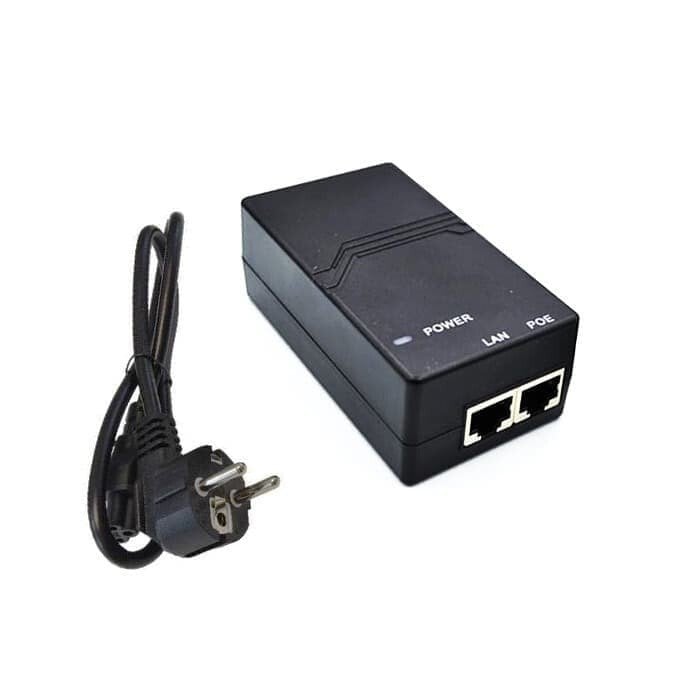

Ruijie RG-E-120(GE) Power Injector
• Up to 15.4W of Power
• Compatible with all IEEE 802.3af standards
• Safe: Low Power Devices Receive Only the Power They Need
• Safe and Reliable Power to WLAN Access Points
• Automatic Detection and Protection of Non–standard Ethernet Terminals
• Supports 10/100/1000Base-T Applications
• Compact Design Fits Easily in WLAN Access Point Installations
|
|
RG-E-120(GE) |
|
|
RG-E-120(GE) |
|
Ports |
10/100/1000 Mbps Copper port (RJ-45) 10/100/1000 Mbps PoE Copper port (RJ-45) |
|
Power |
Output Power Voltage: 50V DC Output Port Power: 15.4W |
|
Dimensions |
53 x 32.5 x 140 |
|
Weight |
200g |
|
Temperature |
Operating Temperature: 0°C to 45°C Storage Temperature: -30°C to 85°C |
|
Humidity |
Operating Humidity: 5% to 90% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
|
Altitude |
Operating Altitude: 0 to 3048m |
|
Regulatory Compliance |
IEEE 802.3af RoHS Compliant, WEEE Compliant, CE |
|
MTBF |
>100,000 hours @25°C |
|
Electromagnetic Emission & Immunity Safety Approval |
FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950 |
