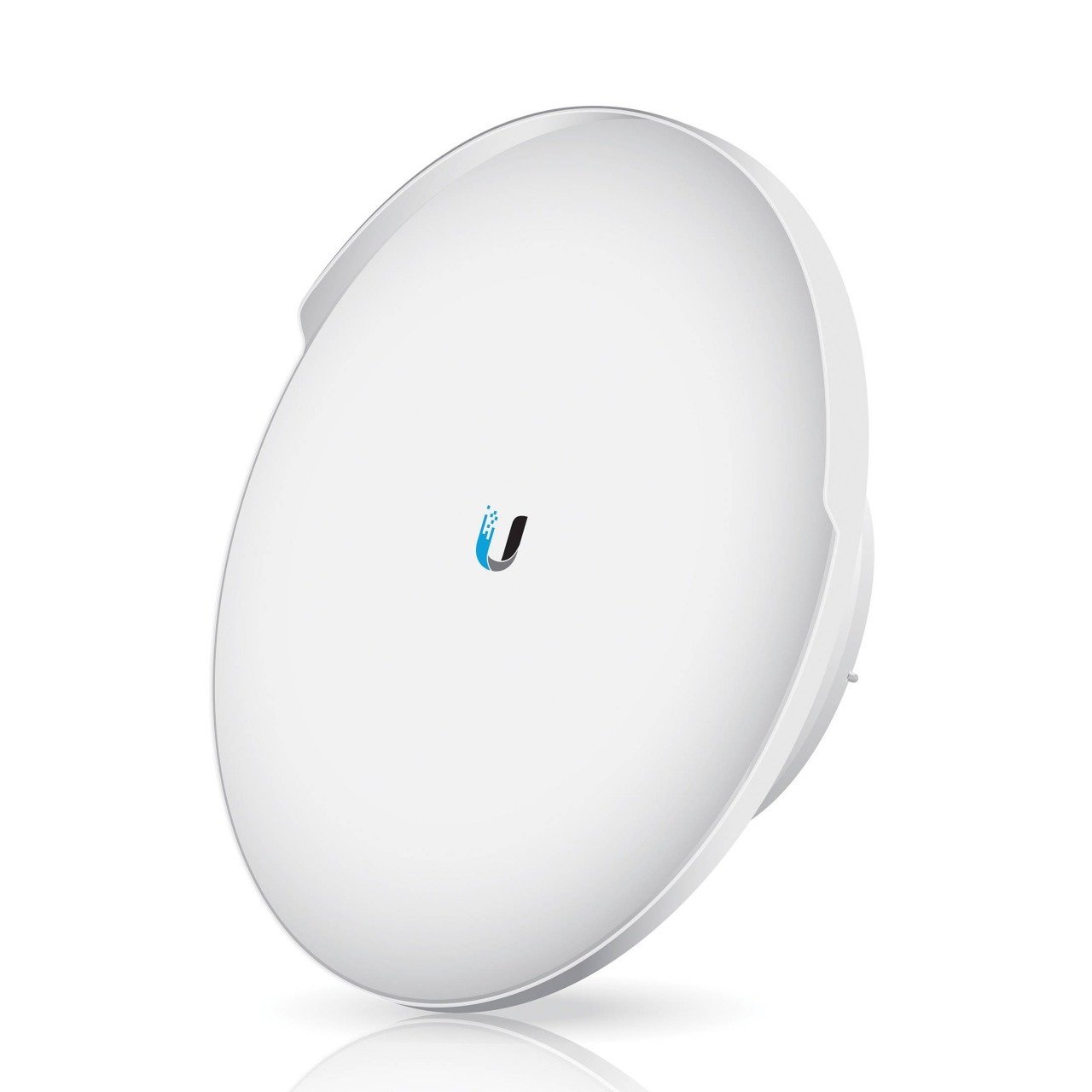

Ubiquiti RocketDish 5AC 31dBi
17.640,47 TL
Kategori
Marka
Stok Kodu
RD-5G31-AC
Garanti Süresi
24 Ay
Fiyat
332,00 USD + KDV
Havale
17.464,07 TL
(%1,00 havale indirimi)
*1.659,09 TL den başlayan taksitlerle!
airMAX® ac 2x2 PtP Köprü Anteni RocketDish ™ ac Antenleri
Noktadan Noktaya (PtP) köprüleme ve ana taşıyıcılar için Rocket ™ 5ac telsizlerini tamamlamak üzere ölçeklenebilirlik, gürültü yalıtımı ve ışın performansında önemli ilerlemeler sunar. RocketM5 ile uyumludurlar; ancak optimum performans Rocket5ac'i gerektirir.

| RD-5G31-AC | |
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in) |
| Weight | 7.6 kg (16.76 lb) (Mount Included) |
| Frequency Range | 5.1 - 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 0.8 |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | - |
| Operating Temperature | 0 to 40° C |
| (32 to 104° F) | |
| Storage Temperature | -30 to 70°C |
| (-22 to 158° F) | |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
