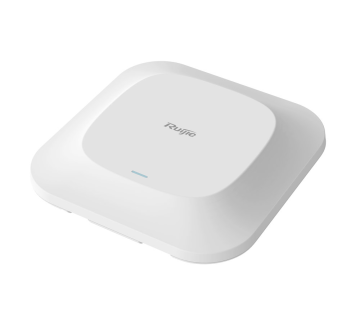

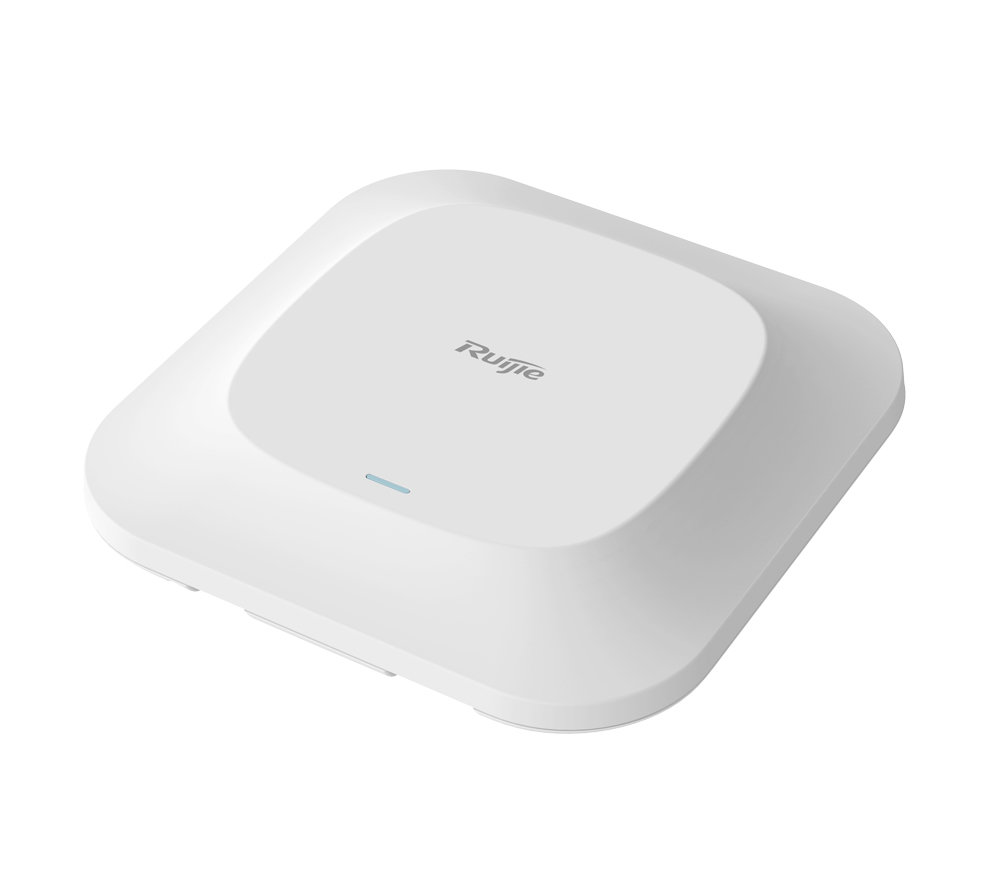

Ruijie RG AP210-L
Daha Güçlü ve Düşük Enterfere 400m² Coverage | Dual-stream, 300M High-speed Transmission | Smart RF Circuit
|
- Basic Specifications |
|
|
Radio |
Single-band |
|
Protocol |
802.11b/g/n |
|
Operating Bands |
802.11b/g/n: 2.4GHz to 2.483GHz |
|
Antenna |
Built-in Antenna |
|
Max Throughput |
300Mbps |
|
Spatial Streams |
2 x 2 |
|
IP Rating |
IP41 |
|
- Ports |
|
|
Service Ports |
1 10/100BASE-T Ethernet uplink Port LAN1 supports PoE |
|
- Power |
|
|
Power Supply |
local power supply (DC 12V/1A) PoE (802.3af） |
|
Power Consumption |
<7.5W |
|
- WLAN |
|
|
Maximum clients per AP |
128 |
|
BSSID capacity |
16 |
|
Remote Intelligent Perception Technology (RIPT) |
Support |
|
Intelligent load balancing based on the number of users or traffic |
Support |
|
STA control |
Support |
|
Bandwidth control |
Support |
|
Preference for 5GHz (band select) |
Support |
|
- Security |
|
|
PSK, Web, 802.1x authentication |
Support |
|
PPSK authentication |
N/A |
|
Data encryption |
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|
PEAP authentication |
Support |
|
User isolation |
Support |
|
User isolation |
Support |
|
Rogue AP detection and countermeasure |
Support |
|
Wireless Intrusion Prevention System (WIPS) |
Support |
|
RADIUS |
Support |
|
CPU Protection Policy (CPP) |
Support |
|
Wireless Intrusion Detection System(WIDS) |
Support |
|
IPv4 address |
Static IP address or DHCP reservation |
|
- Management and Maintenance |
|
|
Network management |
SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
|
Fault detection and alarm |
Support |
|
Cloud AC management |
Support |
|
Statistics and logs |
Support |
|
- Routing |
|
|
IPv4 address |
Static IP address or DHCP reservation |
|
IPv6 address |
Manual or automatic configuration |
|
Multicast |
Multicast to unicast conversion |
|
- Relevant Standard |
|
|
Wi-Fi Alliance Certification |
Support |
|
Safety Standard |
GB4943, EN/IEC 60950-1 |
|
EMC Standard |
GB9254, EN301 489 |
|
Health Standard |
EN 62311 |
|
Radio Standard |
EN300 328, EN301 893 |
|
Vibration Standard |
IEC60068－2-31, ETSI EN300 019, |
|
- Specifications |
|
|
Dimensions (W x D x H) (mm) |
175*175*25.8 |
|
Weight |
0.35kg |
|
- Work Environment |
|
|
Temperature |
Operating Temperature:-10°C to 45°C |
|
Humidity |
Operating Humidity: 10% to 95% (non-condensing) |
