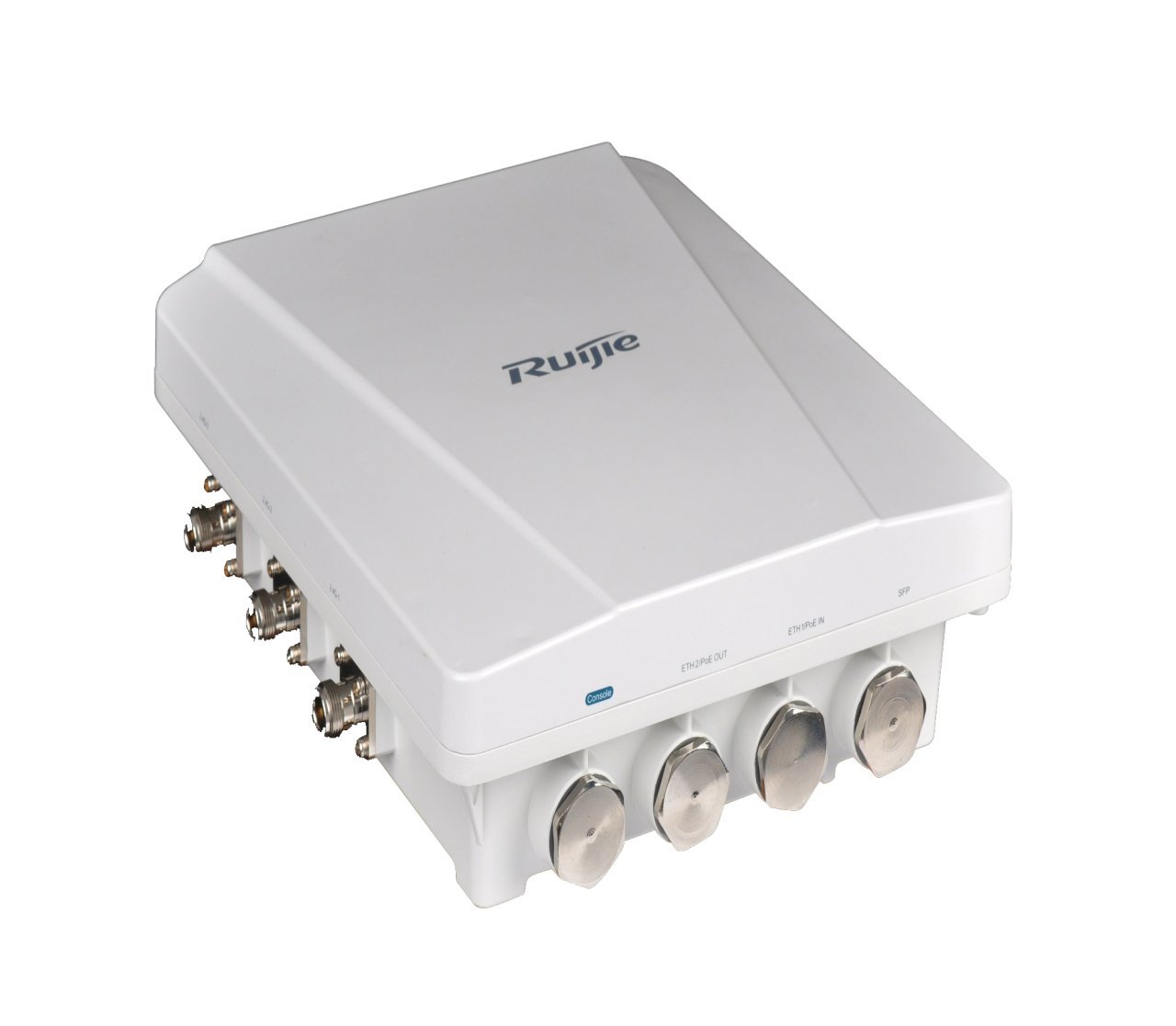

Ruijie RG AP630(CD) Enterprise Level
Güvenilir Yüksek Performans
●802.11ac Wireless Performansı
Ruijie RG-630 (CD), 1.167Gbps'ye kadar erişim oranları sunan 802.11n@2.4GHz ve 802.11ac@5GHz'yi destekler. Olağanüstü kablosuz performansı, kablosuz kullanıcı deneyimini büyük ölçüde optimize eder, eşzamanlı kullanıcı sayısını artırır ve sinyal kapsamını geliştirir.
●En Esnek Gigabit Bağlantı
Ruijie RG-AP630 (CD) Serisi, kablosuz erişim darboğazı olan LAN bağlantı noktasına giden 10/100 / 1000Base-T Ethernet yukarı bağlantı bağlantı noktası ve farklı kullanıcı senaryoları altında kablolu ağ yapısına uyum sağlayan 1000M SFP birleşik bağlantı noktası sunar. SFP Base-X bağlantı noktası, en iyi ağ dağıtımı için veri iletim iş yükünü üstlenir.The RG-AP630(CD) Series offers a 10/100/1000Base-T Ethernet uplink port that rids the LAN port of being the wireless access bottleneck, and a 1000M SFP combo port that adapts to wired networking structure under different user scenarios. The SFP Base-X port takes up the data transmission workload for optimal network deployment.
●Basit Montaj
Sıkıntısız dağıtım optimizasyonu için varsayılan olarak ayarlanabilir bir montaj kiti mevcuttur. Ruijie AP'ler çeşitli senaryolara uyum sağlamak için -60 ° ila 60 ° yatay ve -60 ° ila 90 ° dikey olarak kolayca ayarlanabilir.
Adjustable Mount-kit of Ruijie AP630
●Sıkıntısız Dağıtım için Hepsi Bir Arada Paket
Ruijie RG-AP630 (CD) Outdoor AP size tek elden kurulum paketi sunar. Harici antenlerden yıldırım arestörlerine ve koaksiyel kablolara kadar dışarıda zahmetsizce açılma için ihtiyacınız olan her şey dahildir.The Ruijie RG-AP630(CD) Outdoor AP offers you a one-stop installation package. Everything you need is included, from external antennas to lightning arresters and coaxial cables, for effortless outdoor deployment.
|
Model |
Ruijie RG-AP630(CD) |
|
|
Model |
RG-AP630(CD) |
|
|
Target Deployments |
For big campus, wireless city, harbor, storage room, mine |
|
|
Basic Specifications |
Radio |
Concurrent dual-radio dual-band |
|
Protocol |
802.11a/b/g/n/ac |
|
|
Operating Bands |
802.11b/g/n: 2.4GHz to 2.483GHz |
|
|
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz |
||
|
(vary depending on countries) |
||
|
Antenna |
Built-in directional antenna |
|
|
Antenna Gain |
10dBi |
|
|
Max Throughput |
300Mbps@2.4G |
|
|
867Mbps@5G |
||
|
1.167Gbps per AP |
||
|
Spatial Streams |
2 |
|
|
Modulation |
OFDM: BPSK@6/9Mbps |
|
|
QPSK@12/18Mbps |
||
|
16-QAM@24Mbps |
||
|
64-QAM@48/54Mbps |
||
|
DSSS: DBPSK@1Mbps |
||
|
DQPSK@2Mbps |
||
|
CCK@5.5/11Mbps |
||
|
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
||
|
Receiver Sensitivity |
11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps) |
|
|
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps) |
||
|
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15 |
||
|
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9) |
||
|
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9) |
||
|
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9) |
||
|
Maximum Transmit Power |
27dBm |
|
|
Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations. |
||
|
Adjustable Power |
1dBm |
|
|
IP Rating |
IP67 |
|
|
Ports |
Service Port |
1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector); |
|
1 SFP port (combo with ETH1) |
||
|
Management Port |
|
|
|
Power |
Power Supply |
PoE (802.3af) |
|
Compatible with POE+ |
||
|
Power Consumption |
<12.95W |
|
|
WLAN |
Maximum clients per AP |
Up to 512 |
|
SSID capacity |
Up to 14 per radio |
|
|
Up to 28 per AP |
||
|
SSID hiding |
Support |
|
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID |
Support |
|
|
Remote Intelligent Perception Technology (RIPT) |
Support |
|
|
X-speed |
Support |
|
|
Intelligent load balancing based on the number of users or traffic |
Support |
|
|
STA control |
SSID/radio-based |
|
|
Bandwidth control |
STA/SSID/AP-based speed control |
|
|
Preference for 5GHz (band select) |
Support |
|
|
Wireless position tracking |
Support |
|
|
Dynamic Frequency Selection(DFS) |
Future Release Support |
|
|
Security |
PSK, Web, and 802.1x authentication |
Support |
|
Data encryption |
WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|
|
QR code authentication |
Support |
|
|
SMS authentication |
Support |
|
|
PEAP authentication |
Support |
|
|
Data frame filtering |
Whitelist, static/dynamic blacklist |
|
|
User isolation |
Support |
|
|
Rogue AP detection and countermeasure |
Support |
|
|
Dynamic ACL assignment |
Support |
|
|
WAPI |
Support |
|
|
RADIUS |
Support |
|
|
CPU Protection Policy (CPP) |
Support |
|
|
Network Foundation Protection Policy (NFPP) |
Support |
|
|
Wireless Intrusion Detection System(WIDS) |
Support |
|
|
Wireless Intrusion Prevention System (WIPS) |
Support |
|
|
Routing |
IPv4 address |
Static IP address or DHCP reservation |
|
IPv6 CAPWAP tunnel |
Support |
|
|
ICMPv6 |
Support |
|
|
IPv6 address |
Manual or automatic configuration |
|
|
Multicast |
Multicast to unicast conversion |
|
|
Management and Maintenance |
Network management |
SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management |
|
Visualized wireless heat map analysis |
Support |
|
|
(need to integrate with SNC) |
||
|
Real-time spectrum analysis |
Support |
|
|
(need to integrate with SNC) |
||
|
Fault detection and alarm |
Support |
|
|
Cloud AC management |
Support |
|
|
Statistics and logs |
Support |
|
|
FAT/FIT switching |
The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. |
|
|
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. |
||
|
External Characteristics |
Lock |
Support |
|
LED Indicators |
Power status and WDS signal strength |
|
|
Relevant Standard |
Wi-Fi Alliance Certification |
Support |
|
Safety Standard |
GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
|
|
EMC Standard |
GB9254-2008, EN301 489, EN55022, FCC Part15 |
|
|
Health Standard |
FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6 |
|
|
Radio Standard |
FCC Part15,EN300328, EN301893 |
|
|
Vibration Standard |
GB/T 2423 |
|
|
|
Dimensions (W x D x H) (mm) |
276 × 246 × 90 |
|
Specifications |
Weight |
<2.5kg |
|
Work Environment |
Temperature |
Operating Temperature: -40°C to 55°C |
|
Storage Temperature: -40°C to 70°C |
||
|
Humidity |
Operating Humidity: 5% to 95% (non-condensing) |
|
|
Storage Humidity: 5% to 95% (non-condensing) |
||
|
Installation Mode |
Wall/pole-mount installation |
|
