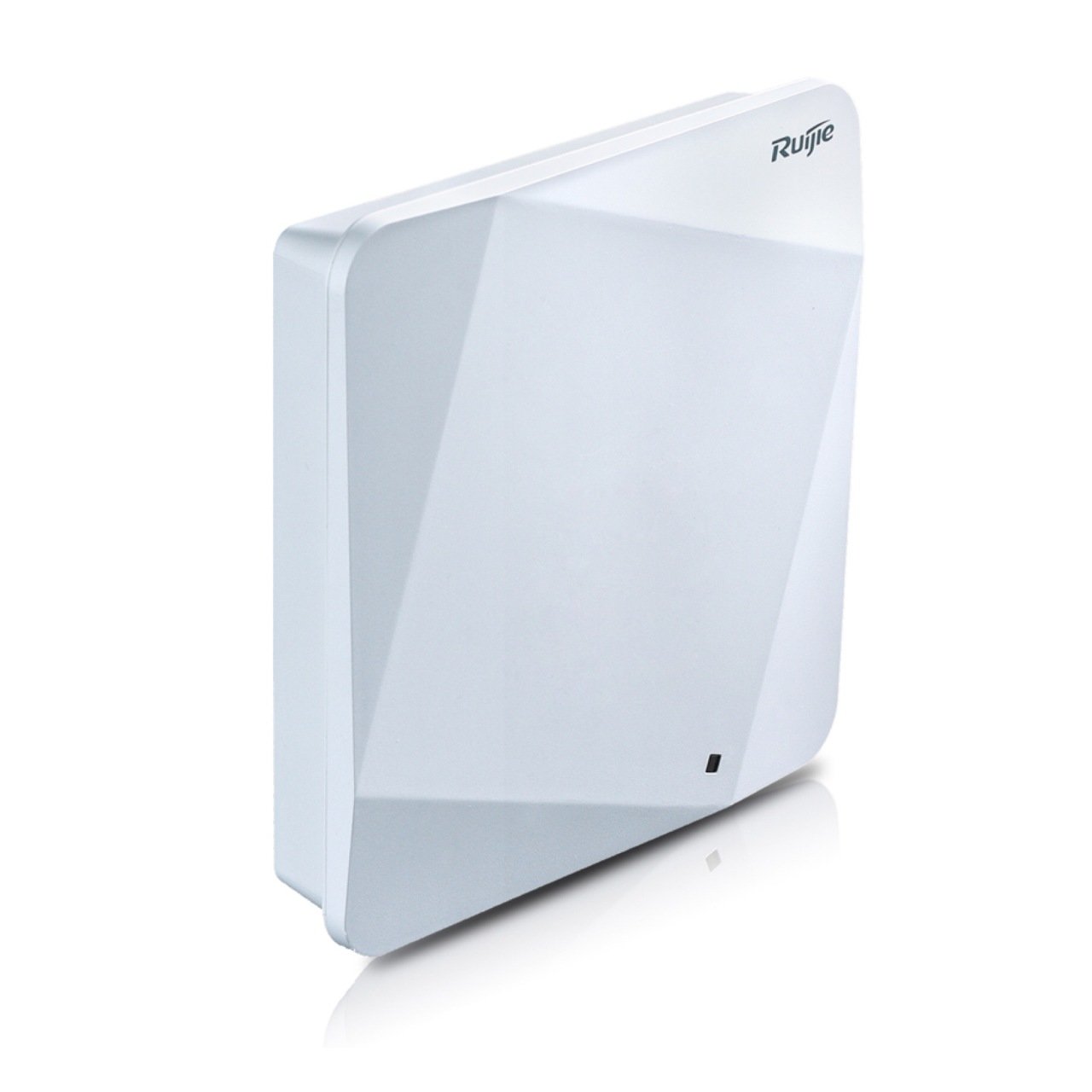

Ruijie RG AP730-L
Tri-band VS. Dual-band
As the number of Wi-Fi devices increases, the Wi-Fi network features dual-band Wi-Fi technology will become congested. In comparison, by adding an extra band, tri-band Wi-Fi brings faster speeds and more reliable connections.
|
-Basic Specifications |
|
|
Radio |
Tri-band (2.4G+5G+5G) |
|
Protocol |
802.11a/b/g/n/ac Wave2 |
|
Operating Bands |
802.11b/g/n: 2.4GHz to 2.483GHz 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) |
|
Antenna |
Built-in Antenna |
|
Max Throughput |
2130Mbps |
|
Spatial Streams |
2 x 2 |
|
IP Rating |
IP41 |
|
-Ports |
|
|
Service Ports |
1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE+ 1 Console Port |
|
-Power |
|
|
Power Supply |
local power supply (DC 48V/0.6A) PoE (802.3at） |
|
Power Consumption |
<25.5W |
|
-WLAN |
|
|
Maximum clients per AP |
768 |
|
BSSID capacity |
48 |
|
SSID hiding |
Support |
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID |
Support |
|
Remote Intelligent Perception Technology (RIPT) |
Support |
|
Intelligent load balancing based on the number of users or traffic |
Support |
|
STA control |
SSID/radio-based |
|
Bandwidth control |
STA/SSID/AP-based speed control |
|
Band Steering (5G Priority) |
Support |
|
Dynamic Frequency Selection(DFS) |
Future release support |
|
-Security |
|
|
PSK authentication |
Support |
|
Web portal authentication (by Ruijie Cloud integration) |
Support |
|
802.1x authentication |
Support |
|
Data encryption |
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|
PEAP authentication |
Support |
|
Data frame filtering |
Whitelist, static/dynamic blacklist |
|
User isolation |
Support |
|
Rogue AP detection and countermeasure |
Support |
|
Standard & Extended IP & MAC ACL |
Support |
|
RADIUS |
Support |
|
CPU Protection Policy (CPP) |
Support |
|
Wireless Intrusion Detection System(WIDS) |
Support |
|
IPv4 address |
Static IP address or DHCP reservation |
|
-Management and Maintenance |
|
|
Network management |
SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
|
Fault detection and alarm |
Support |
|
Cloud AC management |
Support |
|
Statistics and logs |
Support |
|
-External Characteristics |
|
|
Lock |
Standard: Anti-theft screws and ordinary screws |
|
LED Indicators |
1 LED status indicator |
|
-Relevant Standard |
|
|
Wi-Fi Alliance Certification |
Support |
|
Safety Standard |
GB4943, EN/IEC 60950-1 |
|
EMC Standard |
GB9254, EN301 489 |
|
Health Standard |
EN 62311 |
|
Radio Standard |
EN300 328, EN301 893 |
|
Vibration Standard |
IEC60068－2-31, ETSI EN300 019, |
|
-Specifications |
|
|
Dimensions (W x D x H) (mm) |
230x230x42 |
|
Weight |
1.3kg |
|
-Work Environment |
|
|
Temperature |
Operating Temperature: -10°C to 50°C |
|
Humidity |
Operating Humidity: 10% to 95% (non-condensing) |
|
-Installation Mode |
|
|
Installation Mode |
Standard 86-type faceplate installation |
