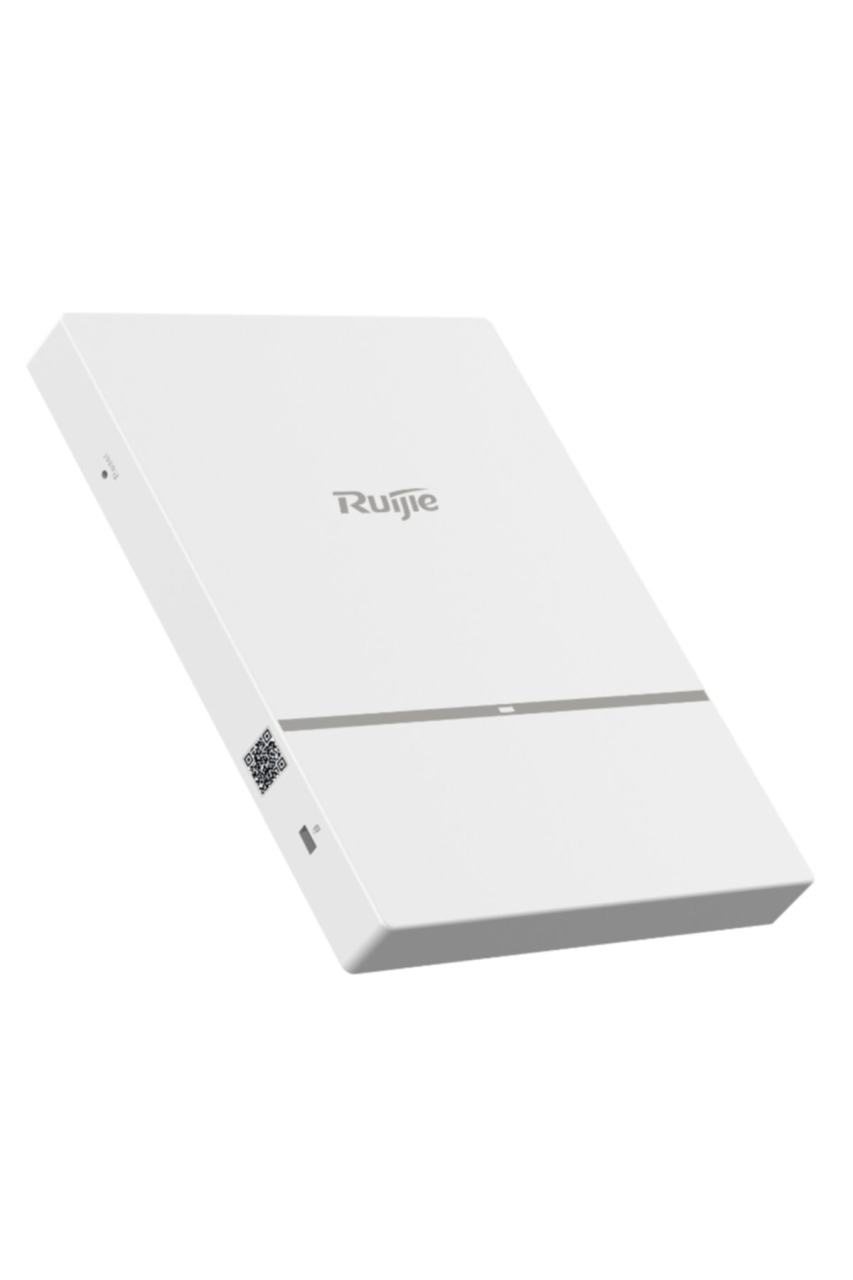

RUIJIE RG-AP820-L(V2) Wi-Fi 6
Hardware specifications
Radio
Dual-radio dual-band：
Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO
Radio 2: 5G 11ax: 2x2 MIMO
Protocol
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands
802.11b/g/n/ax ：2.4G ~ 2.483GHz
802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)
Spatial Streams
Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz
Max Throughput
Maximum throughput (5G+5G mode) per AP: 2.4Gbps
Radio1：5G low band 1.2Gbps
Radio2：5G high band 1.2Gbps
2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps
Radio1：2.4G 0.574Gbps
Radio2：5G 1.2Gbps
Modulation
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps
MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
OFDMA (up to 1024-QAM)
Receiver Sensitivity
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）
11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）
11ac HT20：-88dBm（MCS0）, -63dBm（MCS9）
11ac HT40：-85dBm（MCS0）, -60dBm（MCS9）
11ac HT80：-82dBm（MCS0）, -57dBm（MCS9）
11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11）
Antenna
Integrated antenna design
Antenna Gain
2.4G: 3dBi
5G: 3dBi
Service Ports
1 10/100/1000M Ethernet ports, PoE In
Management Port
1 console port
Reset Button
Support
Anti-theft Lock
Support
LED Indicator
1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)
Transmit Power
≤100mw（20dBm） (vary depending on different countries)
Adjustable Power
1dBm
Power Supply
Local power supply (DC 48V/1A) （Power adapters are sold separately）
PoE (802.3af) – full spectrum operation
Power Consumption
＜12.95W
Physical Specifications
Temperature
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
Installation Mode
Ceiling/wall-mountable
Dimensions (W x D x H)
153mm ×193mm x26mm（Height of the AP only, excluding the mount kit）
Weight
≤0.5kg (include mount kit)
IP Rating
IP41
MTBF
250,000 hours
Certifications and Compliance
Wi-Fi Alliance
· Wi-Fi CERTIFIED™ a, b, g, n, ac
· Wi-Fi CERTIFIED 6™
· WPA3™-Enterprise, Personal
· Wi-Fi Enhanced Open™
· Wi-Fi Agile Multiband™
· WMM®
Safety Standard
GB4943, EN/IEC 62368-1
EMC Standard
GB9254, EN301 489
Radio Standard
SRRC, EN300 328, EN301 893
Software Specifications
WLAN
Maximum clients per AP - 1024
BSSID capacity - Up to 32
SSID hiding - Support
5G Priority (Band Steering) - Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID - Support
Remote Intelligent Perception Technology (RIPT) - Support
Intelligent device recognition technology - Support
Intelligent load balancing based on the number of users or traffic - Support
STA control - SSID/radio-based
Bandwidth control - STA/SSID/AP-based bandwidth control
Data encryption - WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）
PSK and web authentication - Support
PPSK authentication (For Employee) - Support (require wireless controller)
802.1x authentication - Support
PEAP authentication - Support
Data frame filtering - Whitelist, static/dynamic blacklist
User isolation - Support
Rogue AP detection and countermeasure - Support
Dynamic ACL assignment - Support
RADIUS - Support
CPU Protection Policy (CPP) - Support
Network Foundation Protection Policy (NFPP) - Support
IP
IPv4 and IPv6 address
Support
Multicast routing
Multicast to unicast conversion
DHCP service
DHCP Snooping, Option 82, Server, Client
Management and Maintenance
Supported wireless LAN controllers
Ruijie WS Series Wireless Controller
Ruijie MACC-Base Software Controller
Ruijie Cloud (Public Cloud)
Management protocol
Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS)
Support
SNMP
SNMPV1,V2c,V3
LLDP
LLDP, LLDP-MED, LLDP-POE
Syslog / Debug
Support
FAT/FIT/MACC mode switching
Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
