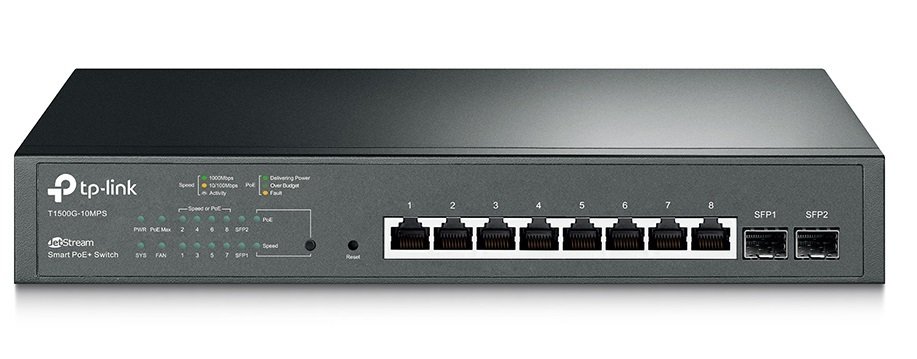

T1500G-10MPS 8 Port Poe Switch
6.951,81 TL
2 SFP Yuvalı JetStream 8-Port Gigabit Smart PoE+ SwitchT1500G-10MPS
- Toplamda 116W güç tasarrufu ile 802.3atna/af-uyumlu PoE+ bağlantı noktalarına ve yararlı PoE güç yönetim özelliklerine sahiptir
- Tüm bağlantı noktalarında Gigabit Ethernet bağlantıları, son hızla aktarıma olanağı sağlar
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X ve Radius Authentication gibi gelişmiş güvenlik özellikleri sunar
- L2/L3/L4 QoS ve IGMP gözetleme, ses ve video uygulamalarını en iyi hale getirir
- Çift Sabit Yazılım Görüntü özelliği, ağınızın güvenirliğini ve çalışma süresini yükseltir
| DONANIM ÖZELLİKLERİ | |
| Standartlar ve Protokoller | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Arabirim | 8 10/100/1000Mbps RJ45 Ports, all supporting PoE+ |
| 2 100/1000Mbps SFP Slots | |
| (Auto-Negotiation/Auto MDI/MDIX) | |
| Ağ Medyası | 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) | |
| 100BASE-FX: MMF, SMF | |
| 1000BASE-X: MMF, SMF | |
| Fan Sayısı | 1 |
| Fiziksel Güvenlik Kilidi | Yes |
| Güç Tüketimi | |
| PoE+ Portları (RJ45) | Standard: 802.3at/af compliant |
| PoE+ Ports: 8 Ports | |
| Power Supply: 116W | |
| Boyutlar ( W X D X H ) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
| Montaj | Rack Mountable |
| Maks. Güç Tüketimi | 15.61W (220V/50Hz with no PD connected) |
| 139.52W (220V/50Hz with 116W PD connected) | |
| Max Heat Dissipation | 53.26 BTU/h (with no PD connected) |
| 476.04 BTU/h (with 116W PD connected) | |
| PERFORMANS | |
| Anahtarlama Kapasitesi | 20Gbps |
| Paket Yönlendirme Hızı | 14.9Mpps |
| MAC Adres Tablosu | 8K |
| Paket Buffer Belleği | 512KB |
| Jumbo Frame | 9KB |
| YAZILIM ÖZELLİKLERİ | |
| Quality of Service | • 802.1p CoS/ DSCP priority |
| • 8 priority queues | |
| • Priority Schedule Mode | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control | |
| - Port/Flow based Rating Limit | |
| • Smoother Performance | |
| • Actions for flows | |
| - Mirror(to supported interface) | |
| - Redirect(to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| • Storm Control | |
| - Multiple Control Modes(kbps/ratio/pps) | |
| - Broadcast/Multicast/Unknown-Unicast Control | |
| L2 Özellikleri | • Link Aggregation |
| - static link aggregation | |
| - Up to 8 aggregation groups and up to 8 ports per group | |
| - 802.3ad LACP | |
| • Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | |
| • Loopback Detection | |
| • Flow Control | |
| - 802.3x Flow Control | |
| • Mirroring | |
| - Port Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| - CPU Mirroring | |
| • Device Link Detect Protocol(DLDP) | |
| L2 Multicast | • 512 IPv4,IPv6 shared multicast groups |
| • IGMP Snooping | |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| - IGMP Snooping Querier | |
| - IGMP Authentication | |
| - Static Group Config | |
| • MLD Snooping | |
| - MLD v1/v2 Snooping | |
| - Fast Leave | |
| - MLD Snooping Querier | |
| - Static Group Config | |
| • Multicast VLAN Registration | |
| • Multicast Filtering | |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 |
| • Multicast Listener Discovery(MLD) Snooping | |
| • IPv6 neighbor discovery (ND) | |
| • Path maximum transmission unit (MTU) discovery | |
| • Internet Control Message Protocol (ICMP) version 6 | |
| • TCPv6/UDPv6 | |
| • IPv6 applications | |
| - DHCPv6 Client | |
| - Ping6 | |
| - Tracert6 | |
| - Telnet(v6) | |
| - IPv6 SNMP | |
| - IPv6 SSH | |
| - IPv6 SSL | |
| - Http/Https | |
| - IPv6 TFTP | |
| VLAN | • VLAN Group |
| - Max. 4K VLAN Groups | |
| • 802.1Q tag VLAN | |
