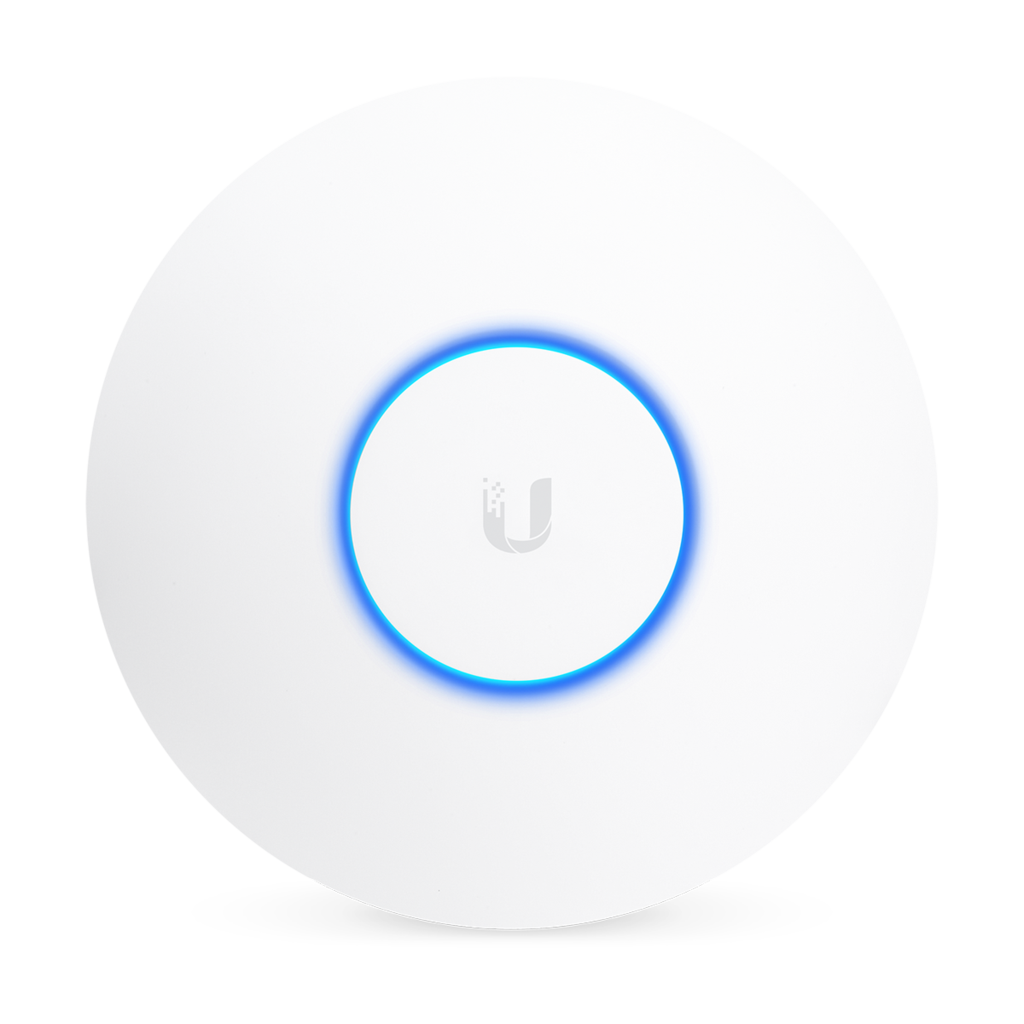

Ubiquiti UniFi AP AC LR
Yenilikçi Anten Tasarımı
Simetrik bağlantı kapsama alanı sağlar ve UniFi AC LR AP'nin anten kazancı, uzak istemcileri bağlamak için tek yönlü, yüksek iletim gücünden daha iyi performans gösterir.
Optimum RF Performansı için Tasarlandı
Yeni tasarlanan UniFi Denetleyici RF performansını optimize eder:
Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
UAP-AC-LONG RANGE |
|
Boyutlar |
175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
Ağırlık |
240 g (8.5 oz) |
Ağ Arayüzü |
(1) 10/100/1000 Ethernet Port |
Buttonlar |
Reset |
Güç Türü |
Passive Power over Ethernet (24V ), |
Güç Kaynağı |
24V, 0.5A Gigabit PoE Adapter* |
Güç Tasarrufu |
Supported |
Maks. Güç Tüketimi |
6.5W |
Maks. TX Gücü |
24 dBm |
Antenler |
(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
Wi-Fi Standardları |
802.11 a/b/g/n/ac |
Kablosuz Gücenliği |
WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES) |
BSSID |
Up to 8 per Radio |
Montaj |
Wall/Ceiling (Kits Included) |
Çalışma Sıcaklığı |
‑10 to 70° C (14 to 158° F) |
Çalışma Nemi |
5 to 95% Noncondensing |
Sertifakalar |
CE, FCC, IC |
Gelişmiş Trafik Yönetimi |
|
VLAN |
802.1Q |
Advanced QoS |
Per‑User Rate Limiting |
Ziyaretçi Trafik İzolasyonu |
Supported |
WMM |
Voice, Video, Best Effort, and Background |
Eşzamanlı Alıcı |
250+ |
Supported Data Rates (Mbps) |
|
Standard |
Data Rates |
802.11ac |
6.5 Mbps to 867 Mbps (MCS0 ‑ MCS9 NSS1/2, VHT 20/40/80) |
802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b |
1, 2, 5.5, 11 Mbps |
