Yeni
USW-Aggregation 8 Port 10G Omurga Switch

USW-Aggregation 8 Port 10G Omurga Switch

Kategori
Ubiquiti Networks , PoE Switchler
Marka
Ubiquiti Networks
Stok Kodu
USW-Aggregation
Garanti Süresi
24 Ay
Fiyat
299,00 USD + KDV
*1.467,39 ₺ den başlayan taksitlerle!
15.602,27 ₺
Ürün Bilgisi
Ürün Bilgisi

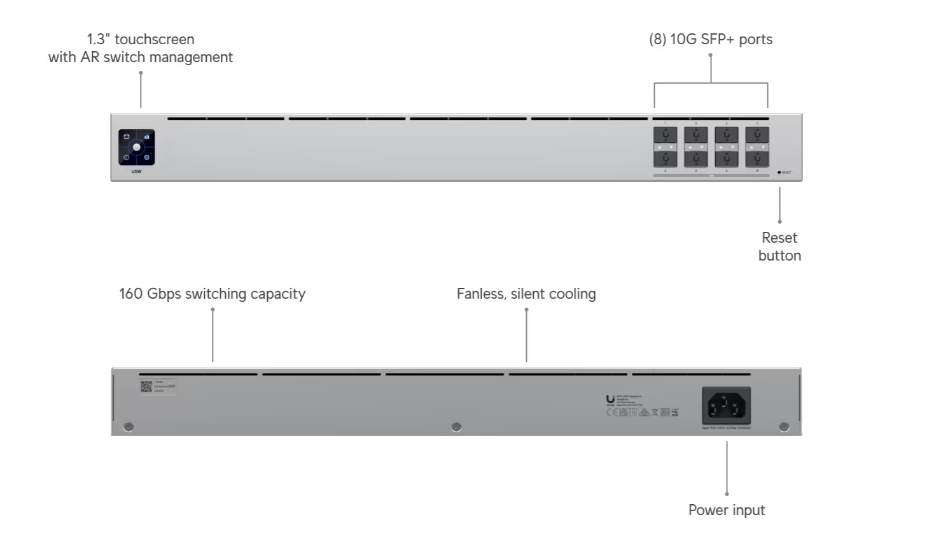

Dimensions
442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Port Layout
10G SFP+
8 (10G/1G)
Form Factor
Rack mount (1U)
Switching Capacity
160 Gbps
Total Non-Blocking Throughput
80 Gbps
Forwarding Rate
119 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Max. Power Consumption
36W (Including SFP modules)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Application Requirements
UniFi Network
Version 5.14.12 and later
