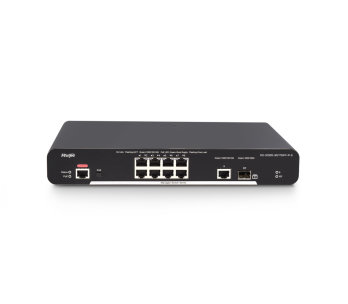

Ruijie XS S1920-9GT1SFP-P-E 8 Port GB PoE

Easy Management

●Ruijie Cloud Web and App

The S1920 Series fully supports Ruijie Cloud, which is a cloud-based service that helps user deploy and manage devices and networks. Now using Ruijie Cloud mobile app, monitoring and simple maintenance job for switch can be done remotely on a cellphone. More professional operations can be done on Ruijie Cloud Website.

●Built-in Web management

Even non-technical users can do easy management for the network through a Web browser and S1920’s Web-UI.

●Command Line Interface

With RGOS’s full command line support, complex configuration and troubleshooting can be done as well.

●SNMP v1/v2c/v3

Switches can be discovered and monitored from NMS system or other SNMP-based network tools.

●Network Time Protocol

Enables synchronization of time among time servers and clients, fulfill the need for clock-dependent devices in the network.

Unique Smart+ Features for CCTV

●Auto Smart Deployment

IP cameras and NVRs will be identified by switch, and configurations like MTU, flow-control and port isolations will be deployed automatically.

●Remote Reboot Helper

With the help of Ruijie Cloud or switch’s Web-UI, PoE IP cameras can be reboot without unplugging the wire on site.

High Performance

●IGMP Snooping v1/v2/v3

Instead of flooding traffic to all ports, the switch filters multicast traffic to improve network performance, especially useful for IPTV and CCTV deployment.

●VLAN support and tagging

Supports IEEE802.1Q VLAN, providing security between device groups.

●Jumbo Frame support

Improves the performance of large data packet transfers, supports frame size up to 9216 Bytes.

Connectivity and Resiliency

●SFP ports for fiber connectivity

Provides fiber uplinks on all models. SFP ports are in addition to RJ45 Ethernet ports, providing higher total number of available ports.

●Power over Ethernet(PoE/PoE+)

5 PoE models provide up to 30Watt per port, which allows support of latest PoE+ capable devices such like high-performance access points and IP cameras, as well as any IEEE802.3af(PoE)-compliant powered devices.

For XS-S1920-9GT1SFP-P-E, Ports 1-8 provide PoE/PoE+. For other four 24-port models, Ports 1-24 provide PoE/PoE+.

●STP, RSTP and MSTP

Supports IEEE802.1D(STP), IEEE802.1w(RSTP) and IEEE802.1s(MSTP) standards, provides redundant links while preventing network loops.

●Rapid Link Detection Protocol(RLDP)

RLDP detects the connectivity of links, and supports the enhanced loop detection function to prevent network faults caused by devices such as Hubs.

●Energy Efficient Ethernet(EEE)

Compliant with IEEE802.3az standard requirements in order to save energy.

Warranty and support

●3-Year Warranty Free of Charge

Go to https://www.ruijienetworks.com/support/servicepolicy to see details on warranty and support policies.
